Benefits
Efficiently and cost-effective evaporate up to 40 gallons per hour at 140°F with a standard MAX-VAP.
- Prevent dilution and maintain consistent solution chemistry by evaporating excess water
- Dramatically reduce your consumable costs by retrieving and reusing plating bath chemistry
- Minimize waste by reducing your rinse water usage, wastewater flow rate and solid waste disposal costs
- Evaporate up to 75 gallons per hour
- Streamline your process by evaporating excess water at the source
- Close the loop on your plating process with a Maxi-Spray counterflow rinsing system

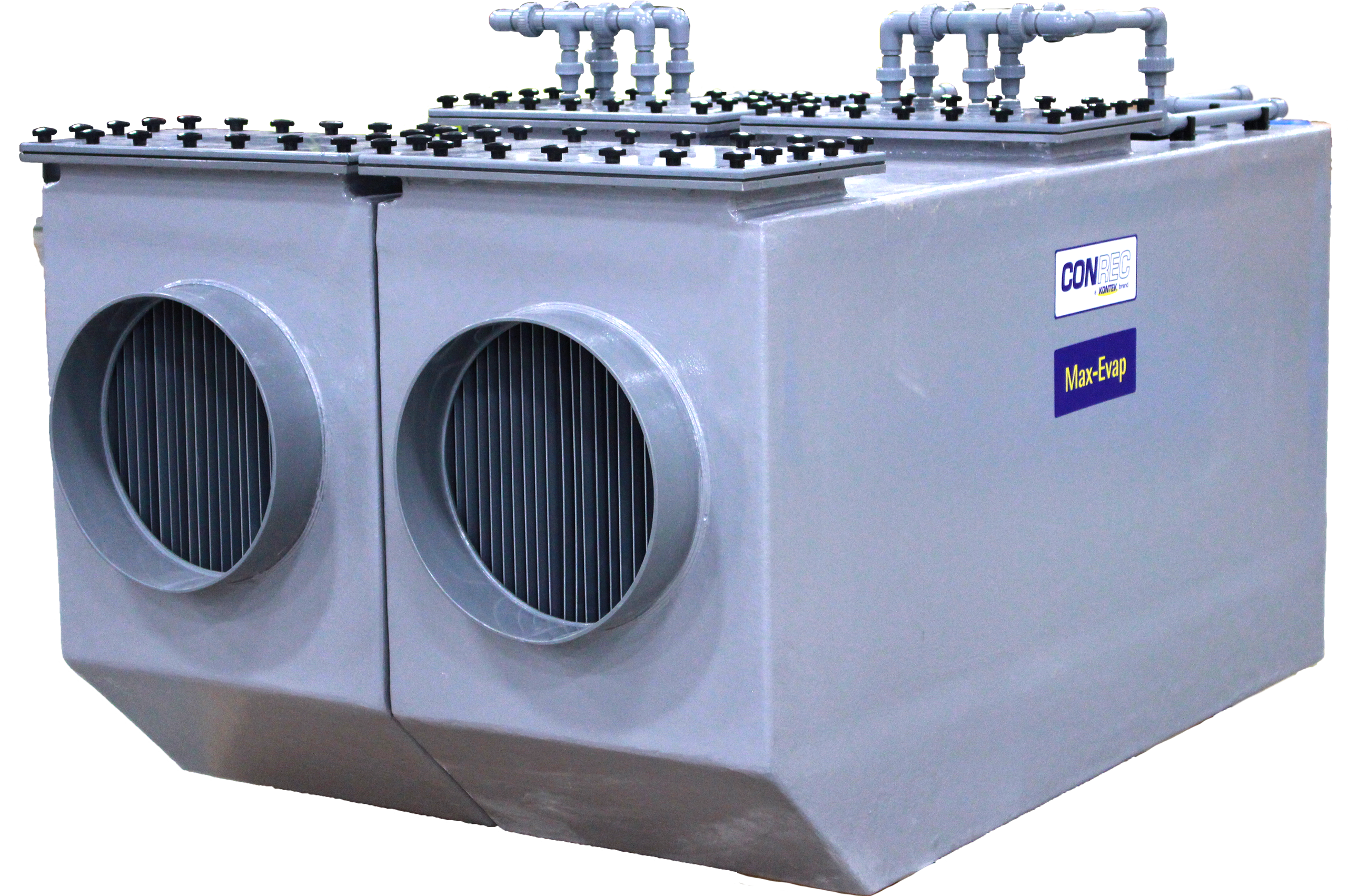

Atmospheric Evaporation
Drive down costs and reclaim drag-out while maintaining consistent solution concentrations with Max-Evap.
Using atmospheric evaporation, Max-Evap protects your plating bath chemistry, prevents solution growth, and reduces your wastewater production rate.
Max-Evap atmospherically evaporates water by taking advantage of ambient plant air and its ability to absorb water/moisture from your process solution, while leaving valuable salts behind. Max-Evap evaporation produces a refrigerating effect, which cools the solution.
After evaporation, Max-Evap discharges two streams: moisture-rich air and a concentrated liquid chemical stream that is returned to the plating bath.

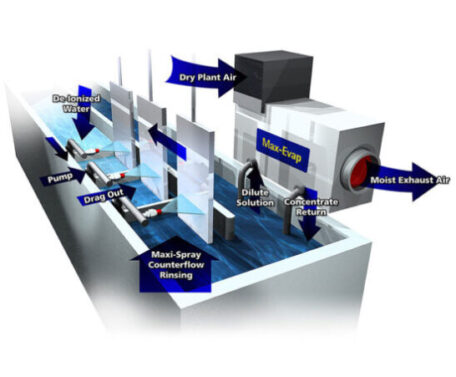

Optimize Your Plating Process with MAX-EVAP and MAXI-SPRAY
Plating Process Optimization
Counterflow Rinsing Technique
When used together MAX-EVAP and MAXI-SPRAY systems, the plating process is optimized, maintaining consistent solution in the chemistry, and closing the loop. The MAX-EVAP evaporates all excess water produced by spraying.
MAX-EVAP and MAXI-SPRAY Benefits:
- Capture and recycle expensive chemicals
- Evaporate water from the process solution
- lncrease bath concentration
- Minimize costly waste treatment
- Reduce operating costs
