Benefits

  • 4 models available to better fit your process needs
  • Automatic dual column on-line regen process keeps your production line
  • Dual column systems capable of running two lines with off-line regen
  • Automatic off-line single column regen process available for lower volume processes
  • Keep plating water quality within specification

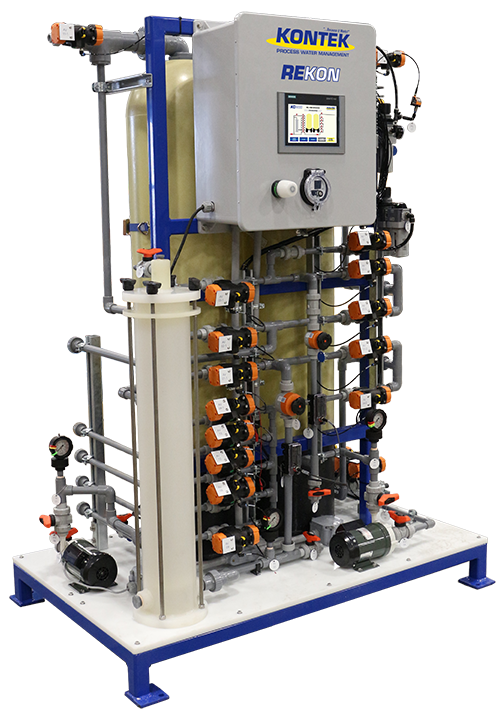

KC200 & KC400

Fully automated plating bath purification system.
4-8 GPM
4 ft3 resin capacity
  • KC-400S
  • KC-400D
2-4 GPM
2 ft3 resin capacity
  • KC-200S
  • KC-200D

KC-400 and KC-200 are engineered for high performance reliability and durability.   Our expanded line of automatic KC technology is available in single our dual column systems which can allow for continuous operation during automatic regen or automatic downtime regen.

KC-200D & KC-400D | Automatic On-line Regeneration

  1. During normal operation, the plating line operates on the primary column
  2. The secondary columns in on standby until the primary column required regeneration
  3. Upon regeneration, the primary column goes into regeneration automatically
  4. The secondary column takes over the water processing and becomes the live column.
  5. Once the regen cycle has completed on the original primary column, it goes into standby mode ready to take over for the secondary column when it requires regeneration

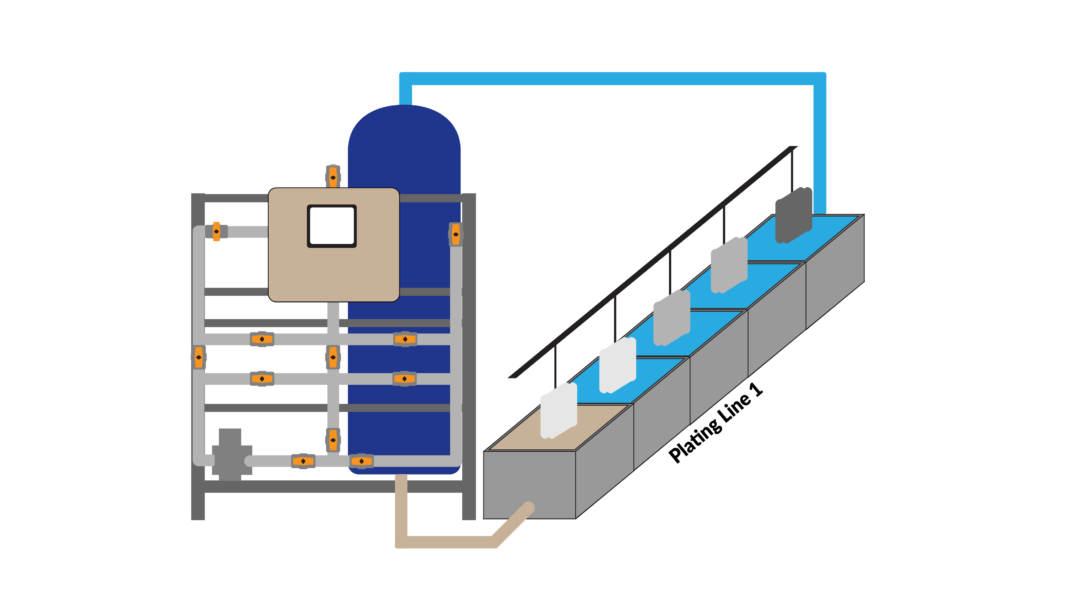

KC-200S & KC-400S | Automatic Single Line Off-line Regeneration

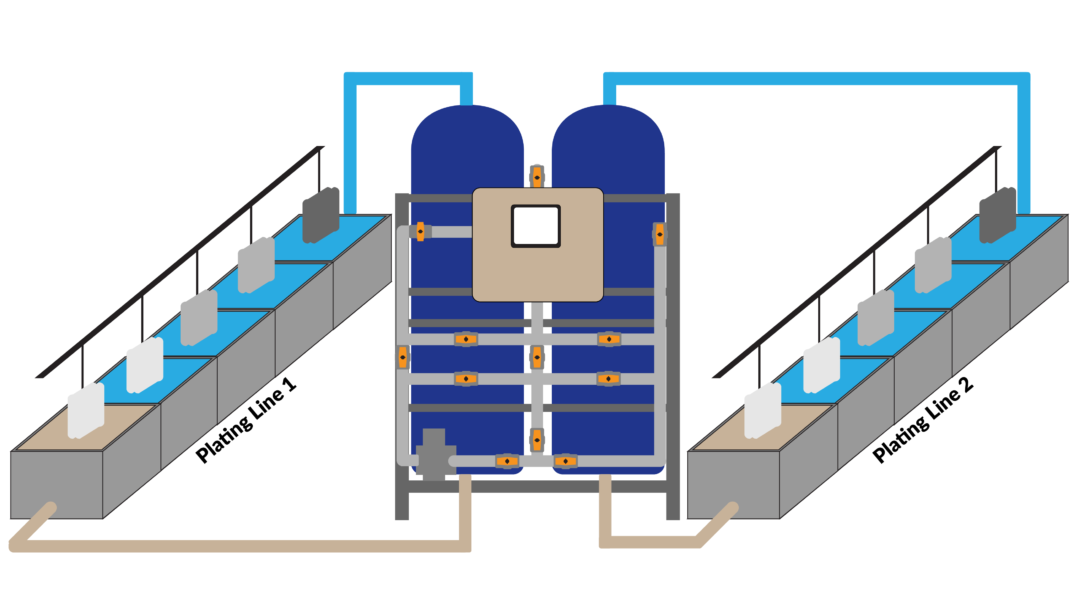

KC-200D & KC-400D | Automatic Two Line Off-line Regeneration

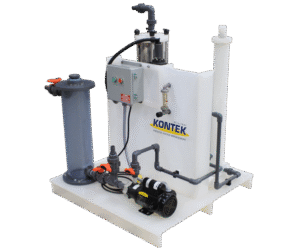

See our Manual Controlled KC Series
