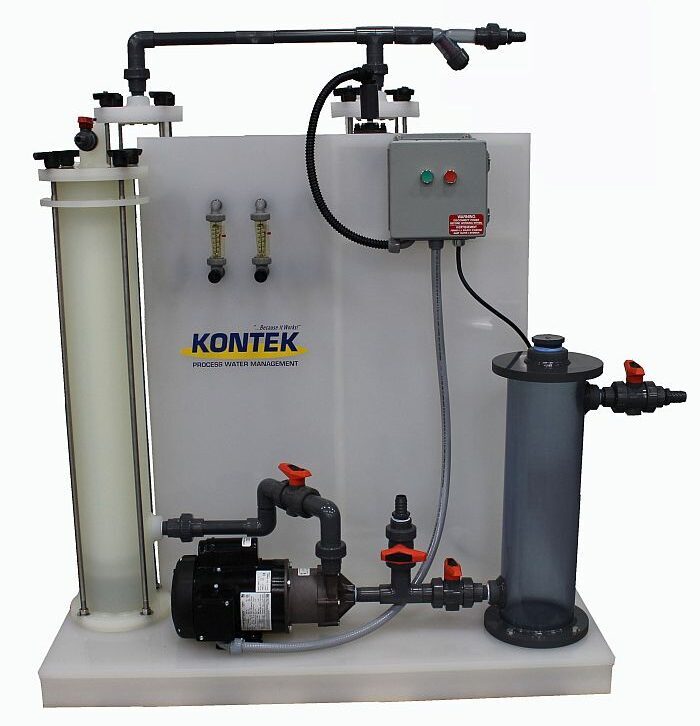

KC20-D – Double Column Ion Exchange System

Industrial Wastewater Ion Exchange System

KC20-D DOUBLE COLUMN ION EXCHANGE SYSTEM

This unit is typically used for tri-chrome bath tank sizes up to 600 USG, subject to confirmation of the tramp metals loading rates.

  • One seal-less magnetically coupled pump with priming chamber & pump discharge pressure

  • One polypropylene filter chamber capacity (1) 30” DOE filter cartridge to prevent fouling

  • Two flow meter with needle valve to accurately control the flow of the process solution, regenerant chemical and rinse water through the column

  • Two 36” resin columns each build-in resin screen to contain the resin, and constructed of polypropylene and acrylic.

KC20-D DOUBLE COLUMN ION EXCHANGE SYSTEM

(2/3 CU. FT.) CAPACITY

Continuous On Line Chrome and Chromate Bath Purification

  • Trivalent Chrome Plating Solution Purification.
  • Trichromate Solution Purification.
  • Nickel Plating Solution Purification.
  • Acid Bath Purification
  • Prefiltration chamber removes suspended solids to prevent resin fouling
  • Optimal pump performance and lifespan using corrosion-resistant magnetic coupled seal less pump
  • Standard controls include pump run-dry protection
  • Reduces system downtime for regeneration and reduces resin costs with ion-selective gel resin that hold up to 3 lbs. of tramp heavy metals metal per cubic foot
  • Saves labour and cleaning costs with quick, easy and infrequent offline regeneration cycles, which use the onboard process pump for regeneration chemistry
  • Protects your resin with proprietary resin containment and screening
  • Removes only targeted tramp metal ions with proprietary TC selective gel resin
  • Accurate flow meters control your flow rates for process solution, regenerant chemicals and rinse water for each KC column
